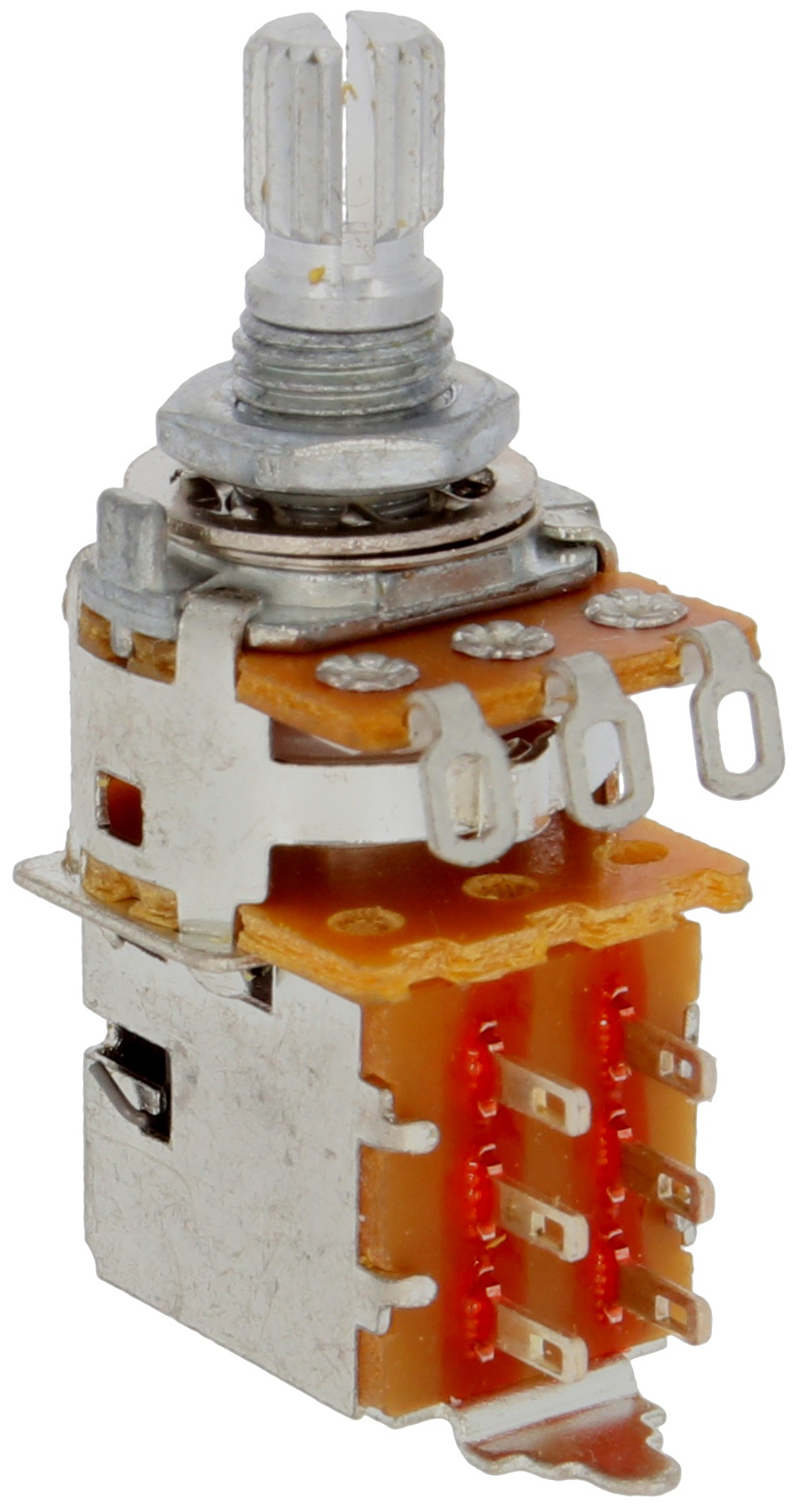

Potentiometer Alpha 500kOhm Push-Pull LOG Audio Taper METRIC Split Shaft

Mono With push-pull DPDT switch (30VDC, 0,3A) Metal axis, COARSE (metric) knurled SPLIT SHAFT Material: Carbon Composition Terminal type: solder lugs Body (DxH): 16×26,5mm Power rating: 0,2W Rated voltage: 200VAC Tolerance: /- 20% Rotation angle: 300 degrees /- 5% Breakdown voltage: 500VAC for 1 minute Rotational life: 15000 cycles Axis length (including thread): 15,5mm Thread length: 7mm Thread Diameter: M7 x 0,75 Coarse spline split shaft (approx. 16 splines) Fits import METRIC knobs
