EntraPASS IP Link

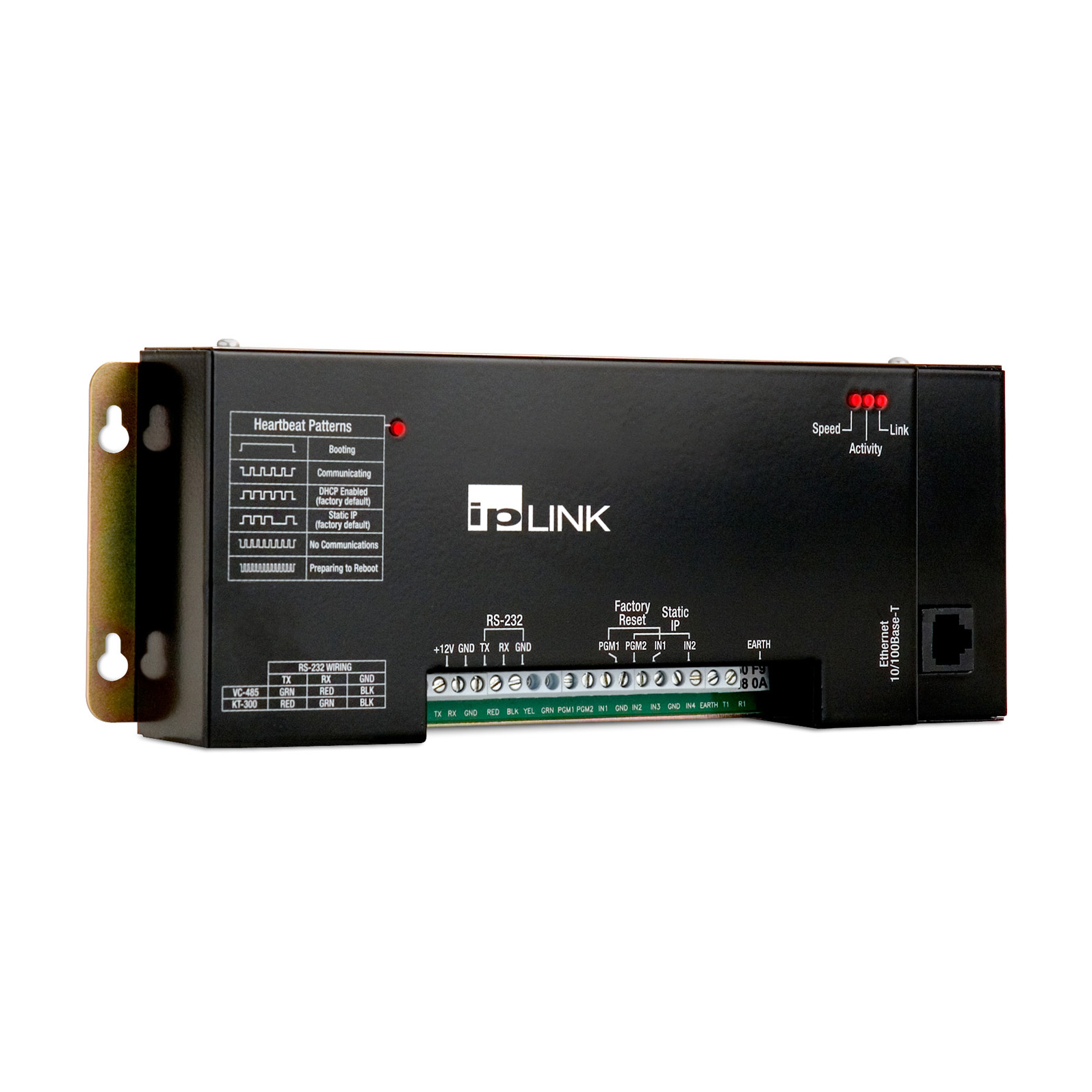

Description Network Connection Made Easy Combine The Kantech IP Link (KT-IP) is an RS-232 to TCP/IP interface that connects KT-100 or KT-300 door controllers to a network. It reduces cabling and gives the controllers real-time access to information and enhanced functionality by leveraging the bi-directional communications capabilities of TCP/IP. KT-IP integrates seamlessly into an existing TCP/IP network and requires no changes to existing equipment, network, or systems. The KT-IP is compatible with EntraPASS security management software and uses 128-bit AES encryption to ensure secure communication. The data transfer from the controller is asynchronous to the actions on the TCP/IP network. The KT-IP manages the polling of door controllers and communicates with the EntraPASS Multi-Site Gateway only when an event has occurred. Communication integrity is ensured through a heartbeat signal, which is sent at a regular interval to the EntraPASS software. This asynchronous communication significantly reduces the bandwidth required to manage your access control system over the network. The KT-IP is easy to set up. Use an EntraPASS workstation, a web browser or the KT-Finder, an intuitive standalone application designed to locate and configure the KT-IP. In most installations, EntraPASS software automatically detects and configures the KT-IP using the MAC address. Data Sheet Installation Manual   FEATURES Powerful solution for connecting KT-300 door controllers to existing network infrastructure Secure communication via 128-bit AES encryption Configured using either a static or dynamic IP address Supports up to 512 IP Links per EntraPASS Gateway for a cost-effective solution to managing multiple remote sites Communicates over the network only as required, keeping network traffic to a minimum Plug and play setup makes it quick and easy to use with EntraPASS access control software Supports up to 32 door controllers per device Compatible with version 4.0 and higher of: EntraPASS Special, Corporate and Global Editions (Global Edition with Corporate Gateway only)
