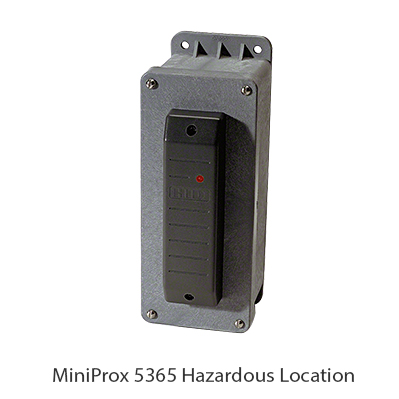

HID MiniProx 5365 Hazardous Location Card Reader

Description The Hazardous Location MiniProx provides the same features and dimensions as the MiniProx reader, with an incorporated junction box rated for use in hazardous locations. The junction box is attached to an appropriate surface location utilizing four holes. Data Sheet – HID 125 kHz Prox Card Readers   FEATURES of the MiniProx 5365 Hazardous Location Accepts 5 to16 volts, meeting most voltage requirements. Available with Wiegand or Clock-and-data interface. Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required. Offers high reliability, consistent read-range and low power consumption in an easy-to-install package. Mounts directly onto metal with no change in read range performance. Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper. Rated Hazardous Locations Class I, Div. 2, Groups A,B,C,D. (US, and Canada) Configurable with EntraPASS Access Control Software   SPECIFICATIONS Typical maximum* read range ProxCard® II card – up to 5.5″ (14 cm) ISOProx® II card – up to 5″ (12.5 cm) ProxKey™ II keyfob – up to 2″ (5 cm) ProxCard® Plus card – up to 2″ (5 cm) SmartProx™ II card – up to 5″ (12.5 cm) *Depending on local installation conditions. Dimensions 6.0″ x 1.7″ x 1.0″ (15.2 x 4.3 x 2.54 cm) Material Polycarbonate UL 94 Power supply Standard MiniProx: 5.1-16 VDC Haz. Loc. MiniProx: 5.1-16 VDC Linear power supplies are recommended. Current requirements Average: 40 mA (5 VDC); 50 mA (12 VDC) Peak: 60 mA (5 VDC); 120 mA (12 VDC) Operating temperature -22º to 150º F (-30º to 65º C) Operating humidity 0-95% relative humidity non-condensing Weight With terminal strip 3.5 oz. (99 gm) With pigtail 3.8 oz. (108 gm) Haz. Loc. MiniProx: 3.8 oz. (108 gm) Transmit frequency 125 kHz Excite frequency 125 kHz Certifications Canada/UL 294 Listed: Access Control System Units Canada/UL 1604 Listed (with Haz. Loc. junction box only): Hazardous Locations Class I, Div. 2, Groups A,B,C,D. FCC Certification, United States Canada Certification CE Mark, Europe UK Type Approval Germany Type Approval Australia C-Tick Mark New Zealand EMC Cable distance Wiegand interface: 500 feet (150 m) Clock-and-data interface: 50 feet (15 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.   **Programming is performed by www.TURNSTILES.us, Inc. technicians and includes integrating access control devices and selected options purchased from www.TURNSTILES.us and www.EntraPass.us.   For More Information and Services Contact TURNSTILES.us
