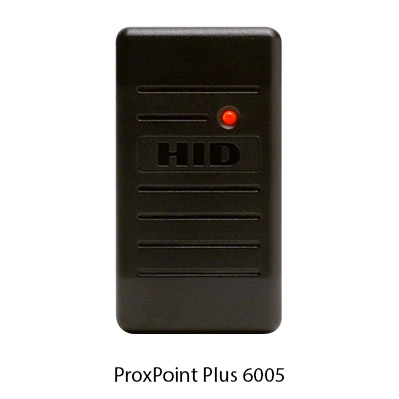

HID ProxPoint Plus 6005 Card Reader

Description Proximity Card Readers have long served as an industry standard for physical access control. Featuring contactless 125 kHz RFID technology, our Prox Readers are affordable, integrate seamlessly with EntraPASS Access Control Software, and allow for the use of multiple form factors, including smart cards, fobs and tags. The ProxPoint Plus 6005 reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications. Data Sheet – ProxPoint Plus 6005 Card Reader Installation Manual – ProxPoint Plus 6005 Card Reader Data Sheet – HID 125 kHz Prox Card Readers   FEATURES of the ProxPoint Plus 6005 Small size, low-cost reader features a beeper and multicolor LED which can be host and/or locally controlled. Potted electronics make the reader suitable for indoor or outdoor use. Can read HID cards with formats up to 85 bits. Designed for mounting directly onto metal with no change in read-range performance. Available with either Wiegand or Clock-and-Data (magnetic stripe data) output. Enables various beeper and LED configurations, depending on individual site requirements. 18″ (45 cm) wire pigtail standard; consult factory for 9′ (2.7 m) pigtail available by special order. Compatible with EntraPASS Access Control System. Aesthetic design available in two cover designs and in four colors to match any decor. Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray. Includes multilingual installation manual.   SPECIFICATIONS Typical maximum* read range ProxCard® II Card – up to 3″ (7.6 cm) ISOProx® II card – up to 2.5″ (6.35 cm) DuoProx® II Card – up to 2.5″ (6.35 cm) Smart ISOProx®/DuoProx® II Cards – up to 2.5″ (6.35 cm) Proximity & MIFARE® Card – up to 2.5″ (6.35 cm) ProxCard Plus® Card – up to 1.0″ (2.5 cm) ProxKey® II Keyfob – up to 1.5″ (3.8 cm) MicroProx® Tag – up to 2″ (5.1 cm) *Depending on local installation conditions. Dimensions 3.135″ x 1.720″ x 0.660″ (7.96 x 4.37 x 1.68 cm) Power Supply 5-16 VDC Linear power supplies are recommended. Maximum Current Requirements Current (DC) Average 30 mA, Peak 75 mA Operating Temperature -22º to 150º F (-30º to 65º C) Operating Humidity 0-95% relative humidity noncondensing Weight 2.7 oz. (75 gm) Current Requirements 20mA avg / 75mA peak at 12VDC Cable Distance Wiegand or Clock-and-Data interface: 500 feet (150 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent. Certifications Canada/UL 294 Listed FCC Certification, United States Canada Certification EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety) Fifteen EU Countries under the R&TTE Directive (EN 300 330 – SRD, and ETS 300 683 – EMC) CE Mark Australia C-Tick, New Zealand Taiwan, China   **Programming is performed by www.TURNSTILES.us, Inc. technicians and includes integrating access control devices and selected options purchased from www.TURNSTILES.us and www.EntraPass.us.   For More Information and Services Contact TURNSTILES.us
