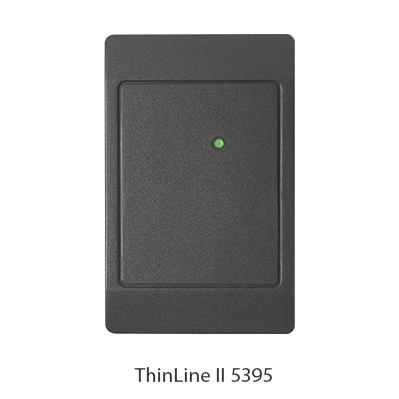

HID ThinLine II 5395 Card Reader

Description Providing performance and reliability, HID’s attractive, unobtrusive ThinLine II proximity card reader is housed in a two-piece, weatherproof secure potted enclosure. Easily installed and maintained with the use of replaceable covers. Data Sheet – HID 125 kHz Prox Card Readers   FEATURES of the ThinLine II 5395 Low Profile Proximity Card Reader The size of most standard U.S. switch plates. Available with Wiegand or Clock-and-Data interface. Potted reader suitable for indoor or outdoor use. Base part numbers: 5395 (Wiegand), 5398 (Clock-and-Data). 18″ (45 cm) wire pigtail standard; consult factory for 9′ (2.7 m) pigtail available by special order. Easily installed and maintained with the use of replaceable covers. Available with a Wiegand or Clock-and-Data interface. Provides high reliability, consistent read range and low power consumption. Features include multicolor LED and internal control or host control of the LED and beeper. Mounts directly on metal with minimal impact on the read range performance. Aesthetic design available in two cover designs and four colors to match any décor. Includes multilingual installation manual. SPECIFICATIONS Typical maximum* read range ProxCard® II Card – up to 5.5″ (14 cm) ISOProx® II Card – up to 5″ (12.7 cm) DuoProx® II Card – up to 5″ (12.7 cm) Smart ISO/DuoProx™ Cards – up to 5″ (12.7 cm) Proximity & MIFARE™ Card – up to 5″ (12.7 cm) ProxCard® Plus Card – up to 1.5″ (3.8 cm) ProxKey® II Keyfob – up to 2″ (5.1 cm) Microprox® Tag – up to 3″ (7.6 cm) *Depending on local installation conditions. Dimensions 4.70″ x 3.00″ x 0.68″ (11.9 x 7.6 x 1.7 cm) Power Supply 5-16 VDC Linear power supplies are recommended. Current Requirements Average: 30 mA (5 VDC); 20 mA (12 VDC) Peak: 110 mA (5 VDC); 115 mA (12 VDC) Operating Temperature -22º to 150º F (-30º to 65º C) Operating Humidity 0-95% relative humidity non-condensing Weight 3.3 oz. (94 gm) Cable Distance Wiegand interface: 500 feet (150 m) Clock-and-data interface: 50 feet (15 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. Certifications Canada/UL 294 Listed FCC Certification, United States Canada Certification EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety) Fifteen EU Countries under the R&TTE Directive (EN300 330 – SRD, and ETS 300 683 – EMC) CE Mark Australia C-Tick, New Zealand Taiwan, China   **Programming is performed by www.TURNSTILES.us, Inc. technicians and includes integrating access control devices and selected options purchased from www.TURNSTILES.us and www.EntraPass.us.   For More Information and Services Contact TURNSTILES.us
