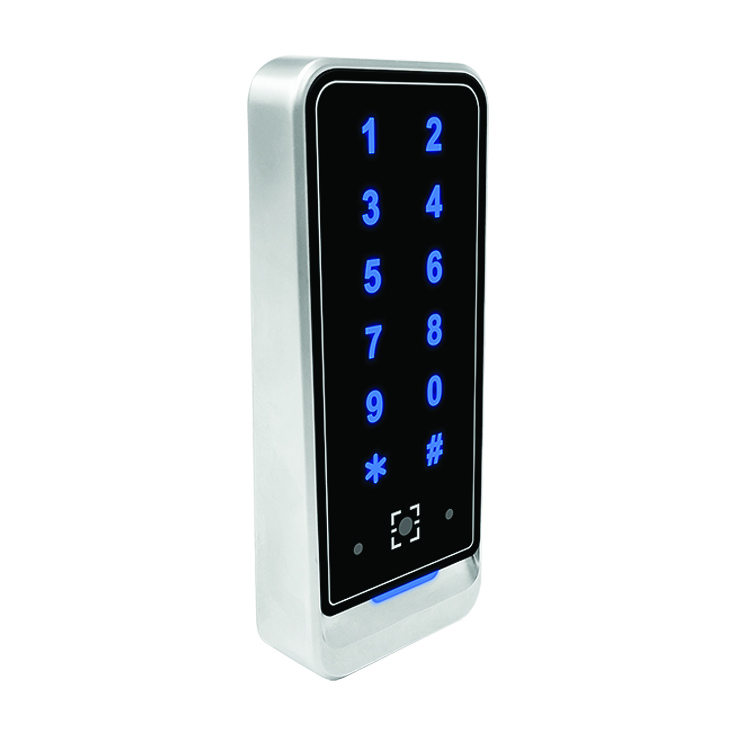

QR502-V Outdoor IP-65 Rated QR Code and Prox Card Reader w/Keypad

Description QR502-V is an outdoor-rated vandal-resistant QR code reader. It can additionally read 125 kHz prox cards and most 13.56 MHz smart cards. QR502-V is a single-gang size and has a vertical footprint. It connects with Atlas 2.6 (or higher), our ZKBioSecurity software, or any 3rd party access control system capable of generating QR codes. Data Sheet – QR502-V   FEATURES QR code & RFID prox reader with keypad IP65-rated and vandal-resistant (metal enclosure) Dynamic QR code with ZKey Mobile Credential APP Supports QR code: QR, Data Matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/ Code 93 etc. Communication : Wiegand 26/34/66 (default) & RS485. Supports 125kHz ID cards or 13.56MHz IC cards, which includes Mifare, Desfire EV1   SPECIFICATIONS QR Sensor: QR, Data matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN, Codabar, Code 39/ Code 93 etc. RFID: 125kHz ID cards / 13.56mHz Reading Distance: QR Code >/= 5cm; RFID Card >/= 4cm Communication: Wiegand Protection: IP65 Power: DC125V ( /- 5%) Operating Temperature: -4ºF to 140ºF Storage Temperature: -4ºF to 176ºF Operating Humidity: 20% to 80% (assuming the working environment temp. is 77ºF) Dimensions: 5.43*2.28*0.63 (in) / 138*58*16 (mm)   DRAWING & DIMENSIONS
