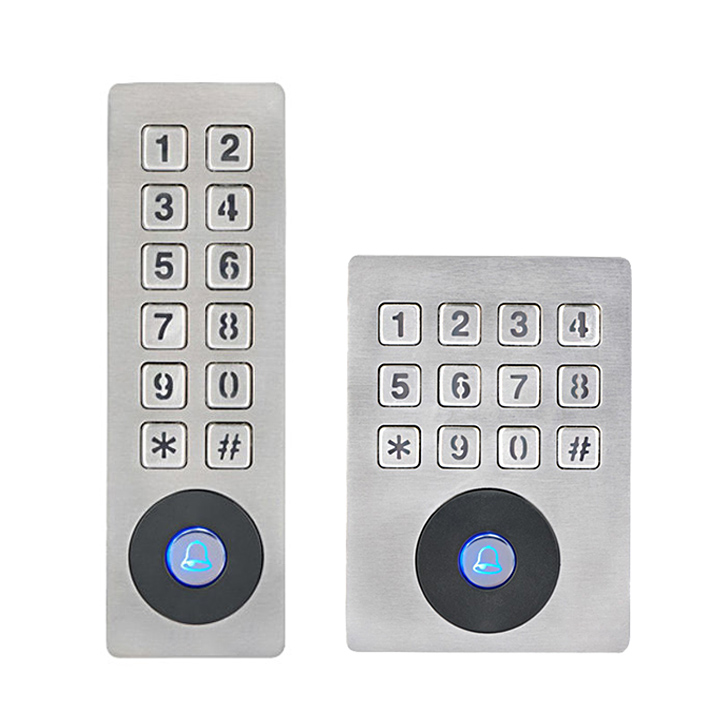

SMK-V / SMK-H Standalone Metal Keypad RFID Reader

Description Experience unprecedented security and effortless access management with our SMK-V and SMK-H Standalone Metal Keypad RFID Readers.  Designed for outdoor use, both boast an IP65-rated vandal-resistant metallic construction, reinforced with a back-lit keypad. Meticulously crafted with state-of-the-art technology and engineered to thrive in even the harshest conditions, these readers redefine the standards of security. With built-in 12V relay contacts, seamlessly integrate these readers directly with electric strikes or magnetic door locks, eliminating the need for complicated wiring setups. For the utmost security and programming versatility, the readers feature a built-in Wiegand-Out port, enabling easy connection to nearly any access control panel. Equipped with a standard 125 KHz 26-bit RFID card reader and the option for a Mifare card reader, these devices cater to various access needs. Plus, enjoy ample storage capacity, accommodating up to 1,000 cards and supporting up to 10 PIN codes. Data Sheet User Manual    FEATURES Highest level of security with built-in Wiegand Outport Built-in speakers & LEDs provide users both audio & visual feedback IP65-rated vandal-proof metallic enclosure Standard ZK 125 kHz 26-bit card reader. Optional Mifare card reader available. Relay outputs for electric lock and alarm Auxiliary inputs for door status sensor and exit switch   SPECIFICATIONS Keypad: Blue back-lit, Numeric keys 0-9, Function keys *, #, Bell LED indicator: blue & red ID Card Capacity: 1,000 cards PIN code Capacity: 10 codes Log Capacity N/A Communication N/A Standard Functions: Single and dual-factor ID card and password authentication Access Control Hardware Interface: Connects 3rd Party Electric Strike or Magnetic Lock, Door Sensor, Exit Button, Alarm Wiegand Inferface: Wiegand-Out port Optional Functions: Built-in Mifare Card reader Power Supply: 12V DC, 750mA Operating Temperature: -4F° to 122F° Operating Humidity: 20% – 80%   DRAWING & DIMENSIONS (H×W×D) SMK-V: 6.3 x 2 x .8 inches (H×W×D) SMK-H: 4.7 x 3.4 x .8 inches
