TUS-WKS Weigand Keypad System

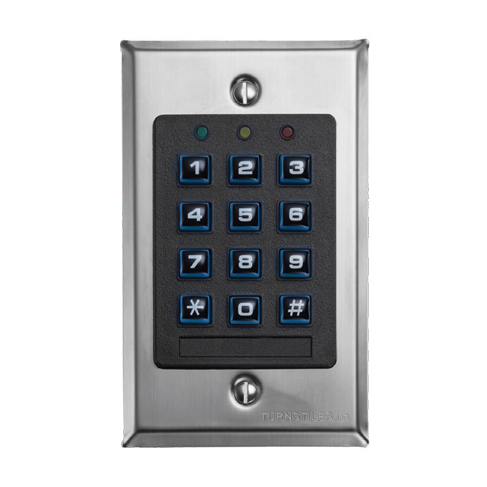

Description The TUS-WKS digital keypad comes pre-programmed and synced to a digital controller for complete control of up to two electrically locked doors (only one keypad included). The 3″x4″ illuminated keypad features a flush-mount stainless steel faceplate, ideal for indoor applications. It offers broad flexibility and ease of use for access control professionals looking for a cost-effective solution for one or two-door configurations. Data Sheet – TUS-WKS Weigand Keypad System Installation and Operation Instructions – TUS-WKS   FEATURES 12-key illuminated 3×4 keypad Dual-voltage 12 VDC or 24 VDC Compatible with access control systems using standard Wiegand output Compatible with access control systems using Wiegand or Character output Single gang mounting Red, green, and yellow status LEDs Tamper detection True 10-digit operation Audible keystroke echo 16 foot (4.88m) cable included OPTIONS Weather-resistant clear cover and/or backbox Additional Keypad SPECIFICATIONS Dimensions: Keypad: 2-3/4″W x 4-1/2″H x 1-1/8″D Enclosure: 6″W x 8″H x 3″D Electrical: CPU: Dual-voltage 12/24 VDC; Minimum 1A supply for the base unit, add supply current for any devices connected to the DC outputs Keypad: 12 VDC: 24 mA at rest; 52 mA active 24 VDC: 50 mA at rest; 110 mA active Operating Temperature: 32 to 110F [0 to 43C] Indoor use Endurance: 1,000,000 cycles Shipping Weight: Keypad only: 1.5lbs [0.68kg] Finishes: US32D/630 – Satin Stainless Steel For More Information and Services Contact us
