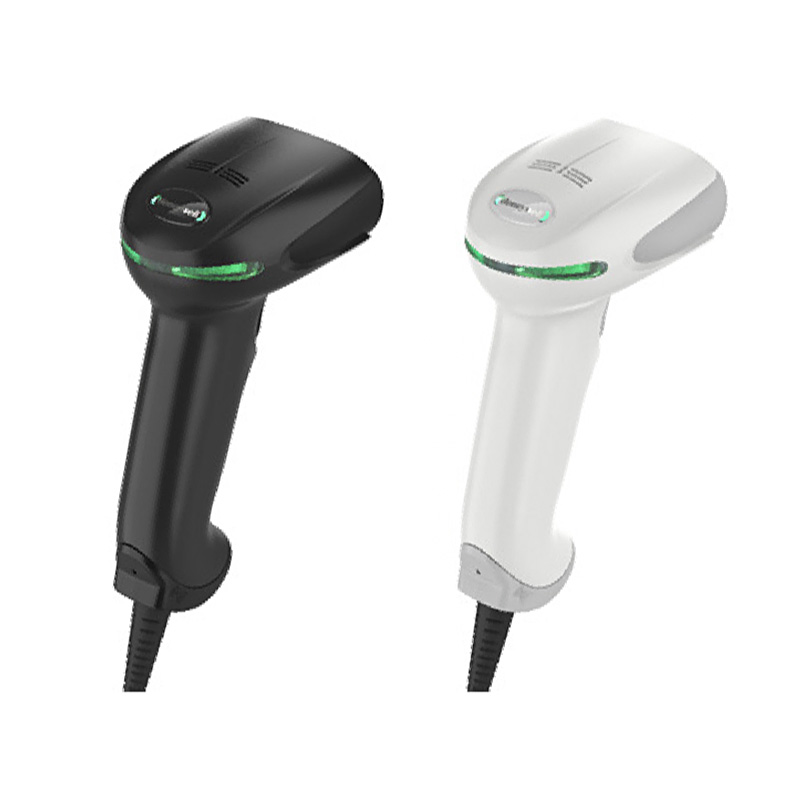

Xenon Performance (XP) 1950g Bar Code and QR Code Scanner

Description The Xenon XP 1950g scanner delivers class-leading durability and superior scan performance, easily capturing even the most difficult-to-read or damaged bar codes/QR codes. Designed for environments that demand high-accuracy scanning of barcodes, whether at a distance or even on damaged barcodes, this scanner had an excellent working reading read-range. Data Sheet – Xenon Performance (XP) 1950g 3D Bar Code and QR Code Scanner   FEATURES Reads the most common bar code formats Reads QR Codes with a Protocol Converter Tumble tested for durability Hand-held or can be Mounted Connects to EntraPASS Access Control System In Black or White   SPECIFICATIONS MECHANICAL/ELECTRICAL Dimensions (L x W x H): 99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in) Scanner Weight: 160 g (5.6 oz) Input Voltage: 4.4V DC – 5.5V DC Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Host System Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX User Indicators: Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional) ENVIRONMENTAL Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air Humidity: 0% to 95% relative humidity, non-condensing Tumble Spec: 2,000 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 50 1.8 m (6 ft) drops to concrete Environmental Sealing: IP41 Light Levels: 0 to 100,000 lux (9,290 foot-candles) SCAN PERFORMANCE Scan Pattern: Area Image (1280 x 800 pixel array) Motion Tolerance: Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus Print Contrast: 20% minimum reflectance difference Roll, Pitch, Skew: ±360°, ±45°, ±65° Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies Note: Decode capabilities dependent on configuration Warranty: 5-year factory warranty
