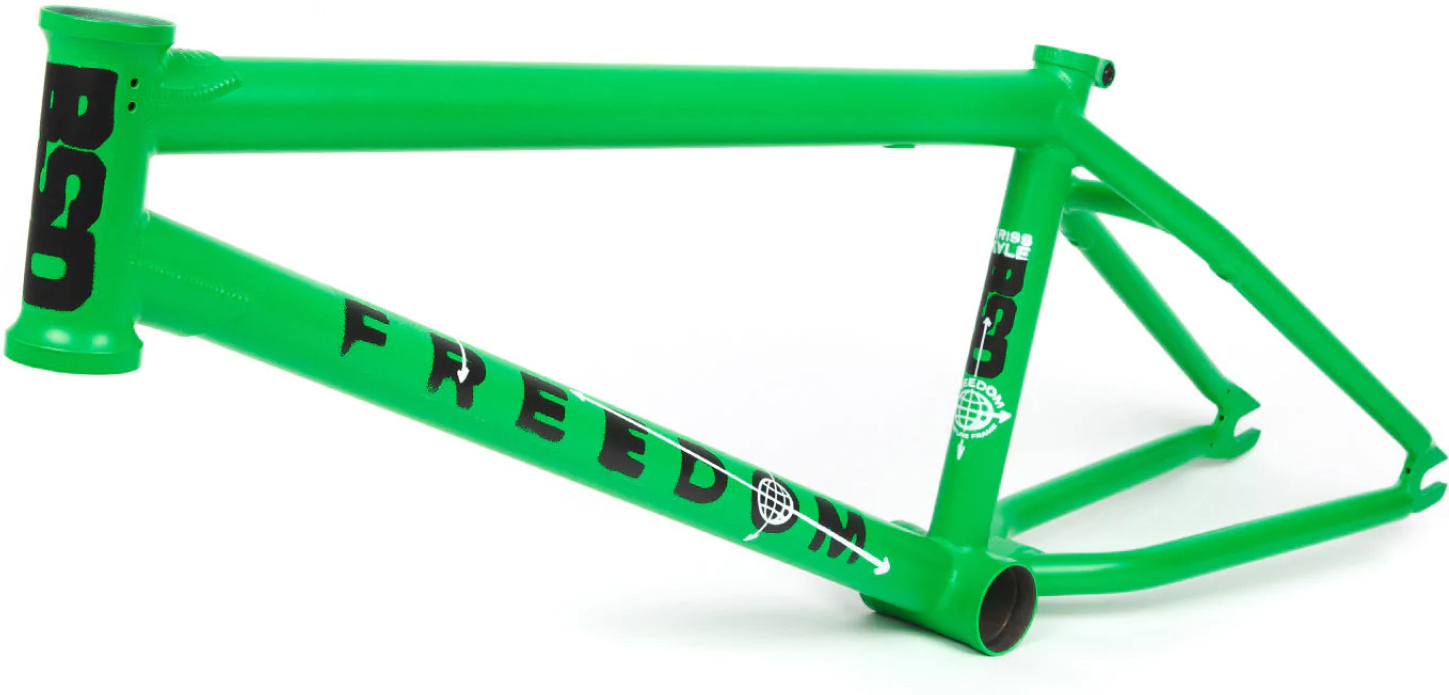

BSD Freedom Frame

The BSD Freedom Frame is the signature frame of BSD team rider, Kris Kyle. BSD took the already great design of of Kyle’s last frame and improved on it with and investment cast wish bone to make the rear end stiffer and stronger to resist bending under heavy abuse. Toptube lengths 20.2 / 20.5 / 20.8 / 21.1 / 21.5 Headtube angle 75° Headtube length 117mm Seattube angle 69.5° Rear end length 13.2″ – 13.625″ – note the 21.5″ frame has a longer rear (13.4″ – 13.825″) BB Height 11.5″ Standover height 9″ Weight 5lbs Brake mounts removable – brake kit available separately Tubing Sanko Japanese seamless 4130 CrMo / triple butted Headtube Heat treated 4130 CrMo / CNC / Offset thickness Bottom Bracket Heat treated 4130 CrMo / CNC machined Chainstay Wishbone Heat treated 4130 CrMo / Invest cast Dropouts Heat treated 4130 CrMo / Invest cast Seatclamp Heat treated 4130 CrMo / Invest cast
